Waffling80 TKL PCB

  • 450 kr
    Unit price per

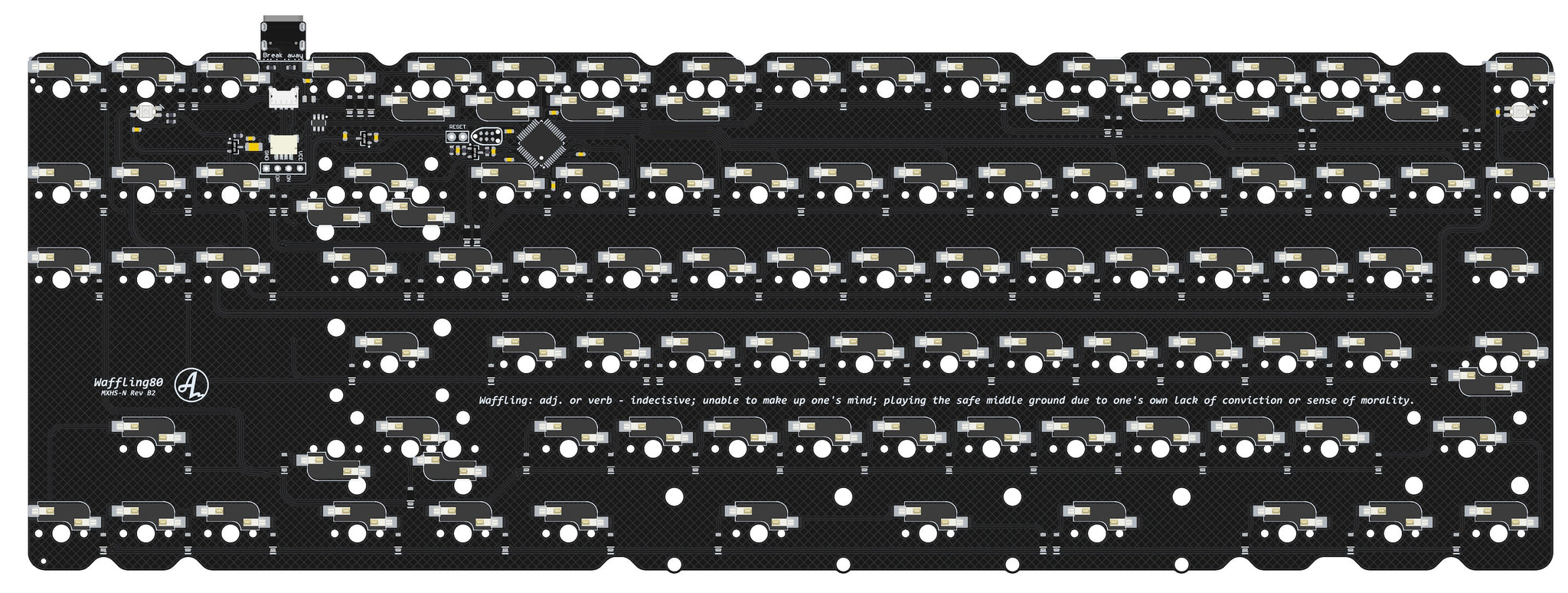

Waffling80 is a multilayout TKL PCB with support for common ANSI and ISO layouts and split space. The goal is to provide a open source alternative that is compatible with many common TKL projects.

The project is split into four different PCB designs. Two MX-versions with different spacebar rotation, one ALPS-versions with north facing spacebar rotation (MX-style PCB mount stabs) and one HiTek-version.

Note: This PCB do not fit all TKL PCBs, make sure to check the compatibility list. If you test this in a case that is not yet added to the list, please let me know. The PCB aims for H87/H88 compatibility, make sure that the spacebar rotation is correct for the case you use.

Can be used with this collection of plates: Link


  • QMK & VIA main repos
  • USB-C (can be broken away) and JST-connector for daughterboard
  • APM32F072 16bit MCU
  • RGB indicator below capslock and scroll lock switch
  • Support H87/H88 cases, check supported list: Link
  • Open sourced with C-OHL S

Layout support:

PCB is delivered tested and pre-flashed with VIA support enabled.

Note: The old VIA application is no longer supported and developed by the VIA team. From now on, use the VIA website for remap, a chromium based browser is needed: Link

Customer Reviews

Based on 2 reviews
Great PCB

Great design, nice ascetics, just a great PCB if you need one matching the h88 footprint.


The only H88 PCB with north facing spacebar you are likely to find anywhere in the world today. Thank you Stefan for keeping this format available through your open source work.
